Velvet Drive 71C and 72C parts diagram

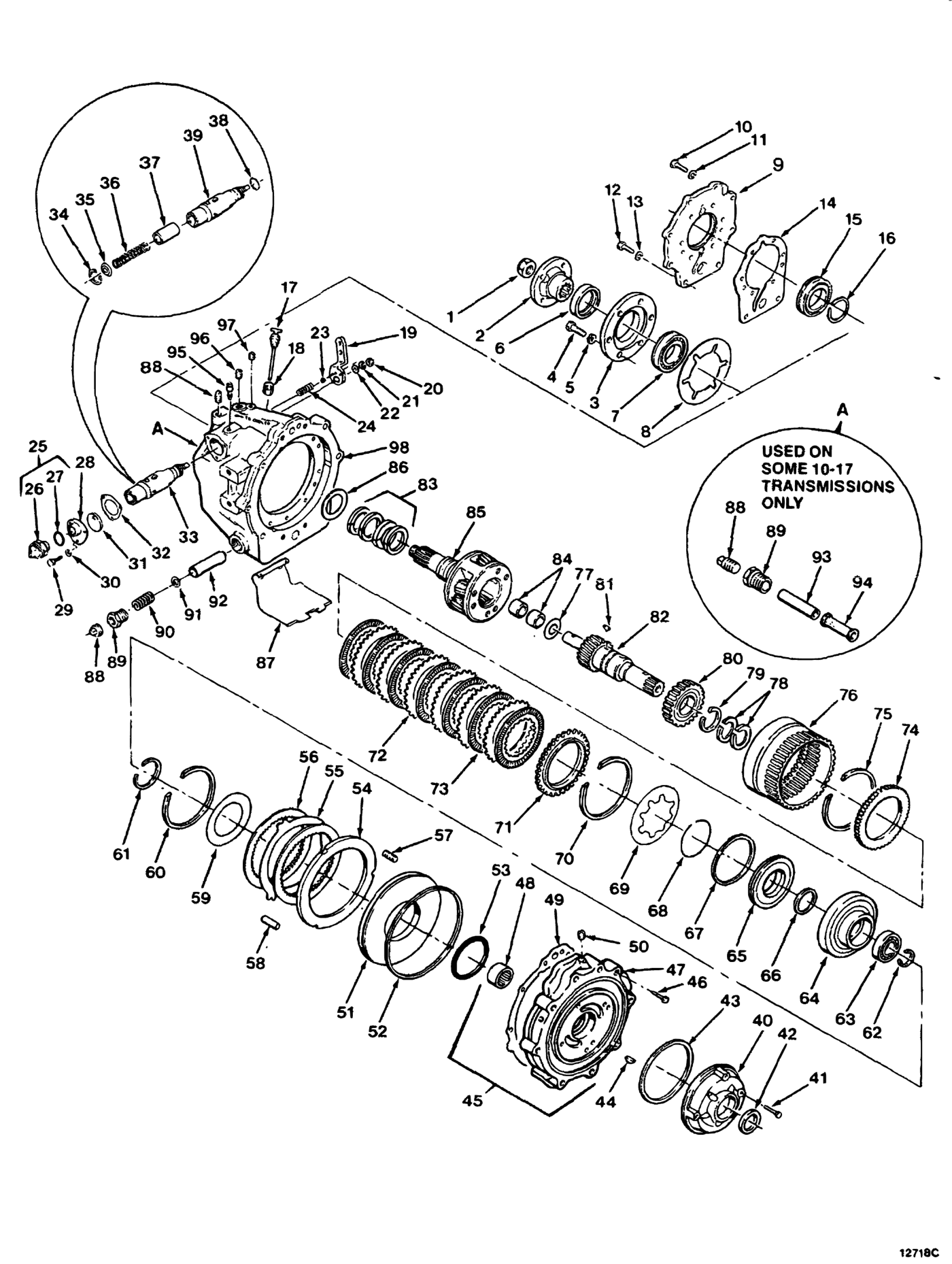

This is the factory exploded view of the Velvet Drive 71C and 72C, Figure 8 from the Borg-Warner service manual (current production). Tap any part to see its factory part number, how many go in one transmission, and which factory kits include it. If we stock it, you can order it right from the part. If it isn't in the online store, call or email us with the number.

Figure 8 has 98 numbered items. Its parts list covers both units, along with 6 factory service kits and a model chart for 35 model numbers (17 for the 71C, 18 for the 72C). 80 of the part numbers are in our online store. Hale Marine is an official Velvet Drive distributor, in business since 1953.

Which transmission do you have?

71C
Tag starts 10-17

72C
Tag starts 10-18

1004/1005
71C and 72C V-driveComing

5000A
Tag starts 2001Coming

5000V
Tag starts 2002Coming

CR-2
Tag starts 1013 or 1014Coming

Narrow it down to your model

Tag number It's stamped on the ID tag on the transmission mount. 1017-004 works too.

Tap a part

Figure 8 · 71C and 72C transmission, current production

Drag to move · pinch or Ctrl + scroll to zoom

Find your model number on the ID tag

The ID tag is a small metal tag on the transmission mount. It's stamped with a model number and a serial number.

A model number that starts 10-17 is a 71C.
One that starts 10-18 is a 72C.

The last three digits pin down the exact unit: its ratio, the case style, and whether a reduction unit is bolted on. We often write these short, so 10-17-000-004 and 1017-004 are the same unit. Type either one into the tag box above.

What the marks in the factory list mean

* The number depends on the model number on your ID tag.
** It depends on which reduction unit, if any, is bolted to the back. On Figure 8 that's items 9 to 16. Call us with your tag number and we'll look it up.
*** Check the model chart. That's the case (item 98) and the forward pinion carrier (item 85).
NSS means not serviced separately. The factory doesn't sell it by itself, so you buy the next assembly up.

71C or 72C: the parts that differ

Most of Figure 8 is shared. These 20 items take a different part number on a 72C. The forward clutch pack kit is different too: A4867AE for 10-17 units, A4867AB for 10-18 units.

Item	Part	71C (10-17)	72C (10-18)
2	Coupling	4547BA	4547AY
3	Bearing retainer	71-7	72-7
4	Hex head bolt (7/16-14 × 1-1/4)	0000179859	10-00-183-043
5	Lockwasher (7/16)	0000103322	not used
7	Bearing (10-17)	B308AGS	B309AGS
8	Bearing retainer gasket	71-147	72-147
11	Lockwasher (7/16)	call	call
61	Snap ring	R6A-7½	4766B
62	Snap ring	4734	4559A
63	Bearing	B107A	B108A
64	Forward clutch cylinder	71-70	72-70
72	Steel clutch plate	3-176	3-176
73	Friction clutch plate	5C-A66A	5C-A66A
75	Snap ring (.033-.037 thick) (10-17 only) (yellow)	10-00-139-048, 10-00-139-049	4768, 4768A, 4768B, 10-00-139-018
76	Ring gear	71-6	72-6
80	Forward clutch hub	71-40	10-16-179-001
81	Woodruff key	0000218211	0000124553
82	Drive gear assembly	71C-3A16	72C-2A16
85	Pinion carrier assembly	call	call
98	Case	call	call

Factory service kits for the 71C and 72C

These are the 6 kits in the factory parts list, with what's in each one. Item numbers point to the drawing.

A4867AB Forward clutch pack kit (10-18 only) (72C only) Order the kit $312.50

Item	Part no.	Description	Qty
71	5C-175A	Clutch pressure plate	1
72A	3-176	Steel clutch plate	6
73A	5C-A66A	Friction clutch plate	7
74	5L-67	Clutch pressure plate	1

A4867AE Forward clutch pack kit (10-17 only) (71C only) Order the kit $318.75

Item	Part no.	Description	Qty
71	5C-175A	Clutch pressure plate	1
72	3-176	Steel clutch plate	4
73	5C-A66A	Friction clutch plate	5
74	5L-67	Clutch pressure plate	1

A4867HA Oil seal and sealing ring kit Order the kit $303.75

Item	Part no.	Description	Qty
6	71C-110	Oil seal	1
38	4804H	O-ring	1
42	10-00-044-014	Oil seal	1
43	3-61	Pump gasket	1
52	4805A	Clutch sealing ring	1
53	4804G	O-ring	1
66	5M-122	O-ring	1
67	5L-36	Clutch sealing ring	1
78	4806J	Sealing ring	2
83	4806B	Sealing ring	4
	10-00-044-017	Oil seal (reduction units only)	1
	10-17-410-002	Service gasket kit	1

10-17-410-002 Service gasket kit Order the kit $88.75

Item	Part no.	Description	Qty
8	71-147	Bearing retainer gasket (10-17 only)	1
8A	72-147	Bearing retainer gasket (10-18 only)	1
14	L4-146	Adapter gasket	1
32	71-14	Valve cover gasket	1
49	71-144B	Gasket	1
	L4-145	Gasket (reduction units only)	1
	L4-147	Gasket (reduction units only)	1

10-04-420-052 Neutral switch kit Order the kit $450.00

Item	Part no.	Description	Qty
	10-04-539-001	Switch and body assembly	1
25	10-00-640-004	Neutral switch assembly	1
28	10-16-039-001	Valve cover	1
29	0000179796	Hex head bolt (1/4-20 x 1/2)	3
30	0000103319	Lockwasher (1/4)	3
31	10-16-099-001	Switch cam	1
32	71-14	Valve cover gasket	1
	1340	Instruction sheet	1

10-95-410-002 Snap ring service kit Order the kit $450.00

Item	Part no.	Description	Qty
15	4766	Retaining ring	1
34	4821	Snap ring	1
60	4822	Snap ring	1
61	R6A-7½	Snap ring (10-17 only)	1
61A	4766B	Snap ring (10-18 only)	1
62	4734	Snap ring (10-17 only)	2
62A	4559A	Snap ring (10-18 only)	1
70	4755	Snap ring	1
75	10-00-139-048	Snap ring (.033-.037 thick) (10-17 only) (Yellow)	1
75A	10-00-139-049	Snap ring (.050-.054 thick) (10-17 only) (Pink)	1
75B	4768	Snap ring (.050-.054 thick) (10-18 only) (Green)	2
75C	4768A	Snap ring (.074-.078 thick) (10-18 only) (Orange)	1
75D	4768B	Snap ring (.096-.100 thick) (10-18 only) (White)	1
75E	10-00-139-018	Snap ring (.062-.066 thick) (10-18 only) (Purple)	1
79	4495	Snap ring	1
	4756D	Snap ring (reduction units only)	1
	4756E	Snap ring (reduction units only)	1
	4816	Snap ring (reduction units only)	1
	4766A	Snap ring (reduction units only)	1

Full parts lists and model charts

Velvet Drive 71C parts list, Figure 8

Item	Part no.	Description	Qty
1	4775L	Output shaft nut	1
2	4547BA	Coupling	1
3	71-7	Bearing retainer	1
4	0000179859	Hex head bolt (7/16-14 × 1-1/4)	6
5	0000103322	Lockwasher (7/16)	6
6	71C-110	Oil seal	1
7	B111AG	Bearing (1 pkg)	1
	B308AGS	Bearing (10-17)	1
8	71-147	Bearing retainer gasket	1
9	call	Adapter (call to confirm)	1
	call	Adapter (call to confirm)	1
	call	Adapter (call to confirm)	1
10	call	Lock bolt (7/16-14 × 7/8) (call to confirm)	6
11	call	Lockwasher (7/16) (call to confirm)	6
12	call	Hex head bolt (7/16-14 × 1-3/4) (call to confirm)	2
13	call	Lockwasher (7/16) (call to confirm)	2
14	L4-146	Adapter gasket	1
15	call	Bearing (call to confirm)	1
16	4766	Retaining ring	1
17	10-17-559-001	Dipstick (all direct drives except -015 and -016)	1
	10-13-559-001	Dipstick (for -015 and -016)	1
18	10-04-034-002	Dipstick tube	1
19	71-79B	Shift lever	1
20	9418892	Hex nut (5/16-24)	1
21	0000108579	Lockwasher (5/16)	1
22	0000103340	Flatwasher (5/16)	1
23	0000453632	Steel ball (5/16)	1
24	71-42	Poppet spring	1
25	10-00-640-004	Neutral switch assembly	1
26	call	Neutral switch (NSS)	1
27	10-00-141-046	O-ring	1
28	10-16-039-001	Valve cover	1
29	0000179796	Hex head bolt (1/4-20 × 1/2)	3
30	0000103319	Lockwasher (1/4)	3
31	10-16-039-001	Switch cam (call to confirm)	1
32	71-14	Valve cover gasket	1
33	71-A244A	Control valve assembly	1
34	4821	Snap ring	1
35	71-246	Spring retainer	1
36	71-242	Valve spring	1
37	71-243	Regulator valve	1
38	4804H	O-ring	1
39	71-244A	Control valve	1
40	71C-A60	Pump assembly	1
41	10-00-183-021	Hex head bolt (5/16-18 × 1-3/8)	4
42	10-00-044-014	Oil seal	1
43	3-61	Pump gasket	1
44	4873	Woodruff key	1
45	71C-A8	Forward and reverse adapter assembly	1
46	4911	Capscrew (3/8-16 × 1-1/4)	4
47	call	Forward and reverse adapter (NSS)	1
48	4840D	Needle bearing	1
49	71-144B	Gasket	1
50	0000444858	Pipe plug (1/4)	1
51	71-35	Reverse clutch piston	1
52	4805A	Clutch sealing ring	1
53	4804G	O-ring	1
54	71-71	Reverse clutch pressure plate	1
55	72-176	Steel clutch plate	0-2
56	72-A66B	Friction clutch plate	1-3
57	71-97	Pressure plate spring	11
58	71-87A	Dowel pin (.312 dia × .438 long)	3
	R6-177	Dowel pin (.312 dia × .621 long)	3
	4622E	Dowel pin (.312 dia × .875 long)	3
59	71-15B	Thrustwasher (call to confirm)	1
	10-16-193-001	Thrustwasher (call to confirm)	1
60	4822	Snap ring	1
61	R6A-7½	Snap ring	1
62	4734	Snap ring	1
63	B107A	Bearing	1
64	71-70	Forward clutch cylinder	1
65	10-16-124-001	Forward clutch piston (call to confirm)	1
	71-45	Forward clutch piston (call to confirm)	1
66	5M-122	O-ring	1
67	5L-36	Piston sealing ring	1
68	5C-33	Clutch spring bearing ring	1
69	3-37	Clutch belleville spring	1
70	4755	Snap ring	1
71	5C-175A	Clutch pressure plate	1
72	3-176	Steel clutch plate	4
73	5C-A66A	Friction clutch plate	5
74	5L-67	Clutch pressure plate	1
75	10-00-139-048	Snap ring (.033-.037 thick) (10-17 only) (yellow)	1
	10-00-139-049	Snap ring (.050-.054 thick) (10-17 only) (pink)	1
76	71-6	Ring gear	1
77	71-17	Thrustwasher	1
78	4806J	Sealing ring	2
79	4495	Snap ring	1
80	71-40	Forward clutch hub	1
81	0000218211	Woodruff key	1
82	71C-3A16	Drive gear assembly	1
83	4806B	Sealing ring	4
84	A4867DD	Bushing	2
85	see model chart	Pinion carrier assembly	1
86	71-159	Thrustwasher (use w/bushing style case)	1
	10-17-193-001	Thrustwasher (use w/sealing ring style case)	1
87	71-140	Oil baffle	1
	71B-140	Oil baffle	1
88	10-00-191-002	Plug (3/8-18)	2
89	4885B	Dryseal bushing (3/4-14)	1
90	5L-222	Spring	1
91	35-143	Flat washer	1
92	72C-98	Oil inlet shield	1
93	71C-84	Oil return tube	1
94	71C-A98	Oil strainer assembly	1
95	A4740G	Breather	1
96	0000444866	Pipe plug (3/8-18)	1
97	0000444687	Pipe plug (1/8-27)	1
98	see model chart	Case	1

Velvet Drive 71C model chart: ratio, case and pinion carrier by tag number

Model	Ratio	Older tag	Case	Pinion carrier	We sell
10-17-000-001	1:1	AS1-71C	10-17-065-004	10-17-659-012
10-17-000-002	1:1	AS1-71CR	10-17-065-004	10-17-659-012
10-17-000-003	1:1	AS1-71CB	10-17-065-006	10-17-659-012
10-17-000-004	1:1	AS1-71CBR	10-17-065-006	10-17-659-012	Rebuilt 1017-004 · New 1017-004
10-17-000-005	1.52:1	AS2-71C	10-17-565-002	10-17-659-020
10-17-000-006	1.52:1	AS2-71CR	10-17-565-002	10-17-659-020	Rebuilt 1017-006
10-17-000-007	1.91:1	AS7-71C	10-17-565-002	10-17-659-018
10-17-000-008	1.91:1	AS7-71CR	10-17-565-002	10-17-659-018	Rebuilt 1017-008
10-17-000-009	2.10:1	AS3-71C	10-17-565-002	10-17-659-016	New 1017-009
10-17-000-010	2.10:1	AS3-71CR	10-17-565-002	10-17-659-016
10-17-000-011	2.57:1	AS14-71C	10-17-565-002	10-17-659-018
10-17-000-012	2.57:1	AS14-71CR	10-17-565-002	10-17-659-018	Rebuilt 1017-012
10-17-000-013	2.91:1	AS15-71C	10-17-565-002	10-17-659-018
10-17-000-014	2.91:1	AS15-71CR	10-17-565-002	10-17-659-018
10-17-000-015	1:1	AS20-71C	10-17-565-002	10-17-659-020
10-17-000-016	1:1	AS20-71CR	10-17-565-002	10-17-659-020
10-17-000-108	1.88:1		10-17-565-002	10-17-659-018

Velvet Drive 72C parts list, Figure 8

Item	Part no.	Description	Qty
1	4775L	Output shaft nut	1
2	4547AY	Coupling	1
3	72-7	Bearing retainer	1
4	10-00-183-043	Hex head bolt (7/16-14 × 1-1/4)	6
6	71C-110	Oil seal	1
7	B111AG	Bearing (1 pkg)	1
	B309AGS	Bearing (10-18)	1
8	72-147	Bearing retainer gasket	1
9	call	Adapter (call to confirm)	1
	call	Adapter (call to confirm)	1
	call	Adapter (call to confirm)	1
10	call	Lock bolt (7/16-14 × 7/8) (call to confirm)	6
11	call	Lockwasher (7/16) (call to confirm)	6
12	call	Hex head bolt (7/16-14 × 1-3/4) (call to confirm)	2
13	call	Lockwasher (7/16) (call to confirm)	2
14	L4-146	Adapter gasket	1
15	call	Bearing (call to confirm)	1
16	4766	Retaining ring	1
17	10-17-559-001	Dipstick (all direct drives except -015 and -016)	1
	10-13-559-001	Dipstick (for -015 and -016)	1
18	10-04-034-002	Dipstick tube	1
19	71-79B	Shift lever	1
20	9418892	Hex nut (5/16-24)	1
21	0000108579	Lockwasher (5/16)	1
22	0000103340	Flatwasher (5/16)	1
23	0000453632	Steel ball (5/16)	1
24	71-42	Poppet spring	1
25	10-00-640-004	Neutral switch assembly	1
26	call	Neutral switch (NSS)	1
27	10-00-141-046	O-ring	1
28	10-16-039-001	Valve cover	1
29	0000179796	Hex head bolt (1/4-20 × 1/2)	3
30	0000103319	Lockwasher (1/4)	3
31	10-16-039-001	Switch cam (call to confirm)	1
32	71-14	Valve cover gasket	1
33	71-A244A	Control valve assembly	1
34	4821	Snap ring	1
35	71-246	Spring retainer	1
36	71-242	Valve spring	1
37	71-243	Regulator valve	1
38	4804H	O-ring	1
39	71-244A	Control valve	1
40	71C-A60	Pump assembly	1
41	10-00-183-021	Hex head bolt (5/16-18 × 1-3/8)	4
42	10-00-044-014	Oil seal	1
43	3-61	Pump gasket	1
44	4873	Woodruff key	1
45	71C-A8	Forward and reverse adapter assembly	1
46	4911	Capscrew (3/8-16 × 1-1/4)	4
47	call	Forward and reverse adapter (NSS)	1
48	4840D	Needle bearing	1
49	71-144B	Gasket	1
50	0000444858	Pipe plug (1/4)	1
51	71-35	Reverse clutch piston	1
52	4805A	Clutch sealing ring	1
53	4804G	O-ring	1
54	71-71	Reverse clutch pressure plate	1
55	72-176	Steel clutch plate	0-2
56	72-A66B	Friction clutch plate	1-3
57	71-97	Pressure plate spring	11
58	71-87A	Dowel pin (.312 dia × .438 long)	3
	R6-177	Dowel pin (.312 dia × .621 long)	3
	4622E	Dowel pin (.312 dia × .875 long)	3
59	71-15B	Thrustwasher (call to confirm)	1
	10-16-193-001	Thrustwasher (call to confirm)	1
60	4822	Snap ring	1
61	4766B	Snap ring	1
62	4559A	Snap ring	1
63	B108A	Bearing	1
64	72-70	Forward clutch cylinder	1
65	10-16-124-001	Forward clutch piston (call to confirm)	1
	71-45	Forward clutch piston (call to confirm)	1
66	5M-122	O-ring	1
67	5L-36	Piston sealing ring	1
68	5C-33	Clutch spring bearing ring	1
69	3-37	Clutch belleville spring	1
70	4755	Snap ring	1
71	5C-175A	Clutch pressure plate	1
72	3-176	Steel clutch plate	6
73	5C-A66A	Friction clutch plate	7
74	5L-67	Clutch pressure plate	1
75	4768	Snap ring (.050-.054 thick) (10-18 only) (green)	1-2
	4768A	Snap ring (.074-.078 thick) (10-18 only) (orange)	1
	4768B	Snap ring (.096-.100 thick) (10-18 only) (white)	1
	10-00-139-018	Snap ring (.062-.066 thick) (10-18 only) (purple)	1
76	72-6	Ring gear	1
77	71-17	Thrustwasher	1
78	4806J	Sealing ring	2
79	4495	Snap ring	1
80	10-16-179-001	Forward clutch hub	1
81	0000124553	Woodruff key	1
82	72C-2A16	Drive gear assembly	1
83	4806B	Sealing ring	4
84	A4867DD	Bushing	2
85	see model chart	Pinion carrier assembly	1
86	71-159	Thrustwasher (use w/bushing style case)	1
	10-17-193-001	Thrustwasher (use w/sealing ring style case)	1
87	71-140	Oil baffle	1
	71B-140	Oil baffle	1
88	10-00-191-002	Plug (3/8-18)	2
89	4885B	Dryseal bushing (3/4-14)	1
90	5L-222	Spring	1
91	35-143	Flat washer	1
92	72C-98	Oil inlet shield	1
93	71C-84	Oil return tube	1
94	71C-A98	Oil strainer assembly	1
95	A4740G	Breather	1
96	0000444866	Pipe plug (3/8-18)	1
97	0000444687	Pipe plug (1/8-27)	1
98	see model chart	Case	1

Velvet Drive 72C model chart: ratio, case and pinion carrier by tag number

Model	Ratio	Older tag	Case	Pinion carrier	We sell
10-18-000-001	1:1	AS11-72C	10-18-565-001	10-18-659-006
10-18-000-002	1:1	AS11-72CR	10-18-565-001	10-18-659-006	Rebuilt 1018-002 · New 1018-002
10-18-000-003	1.52:1	AS12-72C	10-18-565-002	10-18-659-014
10-18-000-004	1.52:1	AS12-72CR	10-18-565-002	10-18-659-014	Rebuilt 1018-004 · New 1018-004
10-18-000-005	1.91:1	AS17-72C	10-18-565-002	10-18-659-012
10-18-000-006	1.91:1	AS17-72CR	10-18-565-002	10-18-659-012
10-18-000-007	2.10:1	AS13-72C	10-18-565-002	10-18-659-010	Rebuilt 1018-007 · New 1018-007
10-18-000-008	2.10:1	AS13-72CR	10-18-565-002	10-18-659-010	Rebuilt 1018-008 · New 1018-008
10-18-000-009	2.57:1	AS14-72C	10-18-565-002	10-18-659-012
10-18-000-010	2.57:1	AS14-72CR	10-18-565-002	10-18-659-012	Rebuilt 1018-010 · New 1018-010
10-18-000-011	2.91:1	AS15-72C	10-18-565-002	10-18-659-012
10-18-000-012	2.91:1	AS15-72CR	10-18-565-002	10-18-659-012	Rebuilt 1018-012 · New 1018-012
10-18-000-013	1:1	AS20-72C	10-18-565-002	10-18-659-014
10-18-000-014	1:1	AS20-72CR	10-18-565-002	10-18-659-014	Rebuilt 1018-014
10-18-000-015	1:1		10-18-565-002	10-18-659-008
10-18-000-016	1:1		10-18-565-002	10-18-659-008
10-18-000-017	1:1		10-18-565-001	10-18-659-006
10-18-000-106	1.88:1		10-18-565-002	10-18-659-012	Rebuilt 1018-106 · New 1018-106

Velvet Drive 71C and 72C transmission exploded view, Figure 8, with parts numbered 1 to 98 — Figure 8, Velvet Drive 71C and 72C, current production. Open the image to print or save it.

Common questions

Where's the ID tag on a 71C or 72C?

On the transmission mount. It's a small metal tag stamped with the model number and serial number.

Are 71C and 72C parts the same?

Most of them. 20 of the 98 items on Figure 8 take a different part number on the 72C, including the coupling, bearings, forward clutch cylinder, ring gear, forward clutch hub and drive gear. The table above lists them.

What does NSS mean in the parts list?

Not serviced separately. The factory doesn't sell that part alone, so you buy the next assembly up.

Why is there no single number for the case or pinion carrier?

They change with the model. Find your model number on the ID tag, then check the model chart.

Does this drawing cover reduction units?

No. Figure 8 is the transmission itself. Reduction units have their own drawings in the manual, and items 9 to 16 here change with the reduction unit. Call us with your tag number for those.

What if the part isn't in your online store?

Call (804) 333-3677, Monday to Friday 9 to 3 Eastern, or email sales@halemarine.com with the part number.

More on each series

71C. The Velvet Drive 71C is the cast-iron 71 series in 1017 part numbers, from 1:1 direct drive to 2.91:1 reduction. Read about the 71C or shop 71 Series parts.

72C. The Velvet Drive 72C is the cast-iron 72 series in 1018 part numbers, an in-line transmission built from 1:1 up to 2.91:1. Read about the 72C or shop 72 Series parts.

Not sure which you have? See how to identify your Velvet Drive and its ratio.

The drawing and part numbers come from the Borg-Warner Velvet Drive 71C/72C service manual, Figure 8 (current production). Older units and reduction gear housings can use different parts, so check the number on your ID tag or call us before you order.

Questions? Call (804) 333-3677, Mon-Fri 9-3 ET, or email sales@halemarine.com. Updated September 27, 2026.
