2002-410-001 5000V Gasket & Seal Kit

Part # 2002-410-001 · 6 sold

$666.25

Qty

Ships from Warsaw, VA, once or twice a week. No payment is taken online: within 24 hours of your order, we email you a PayPal payment link that includes shipping.

Not sure this is your unit? Call Chris at (804) 333-3677 (Mon-Fri 9-3 ET) with the numbers off your tag.

About this part

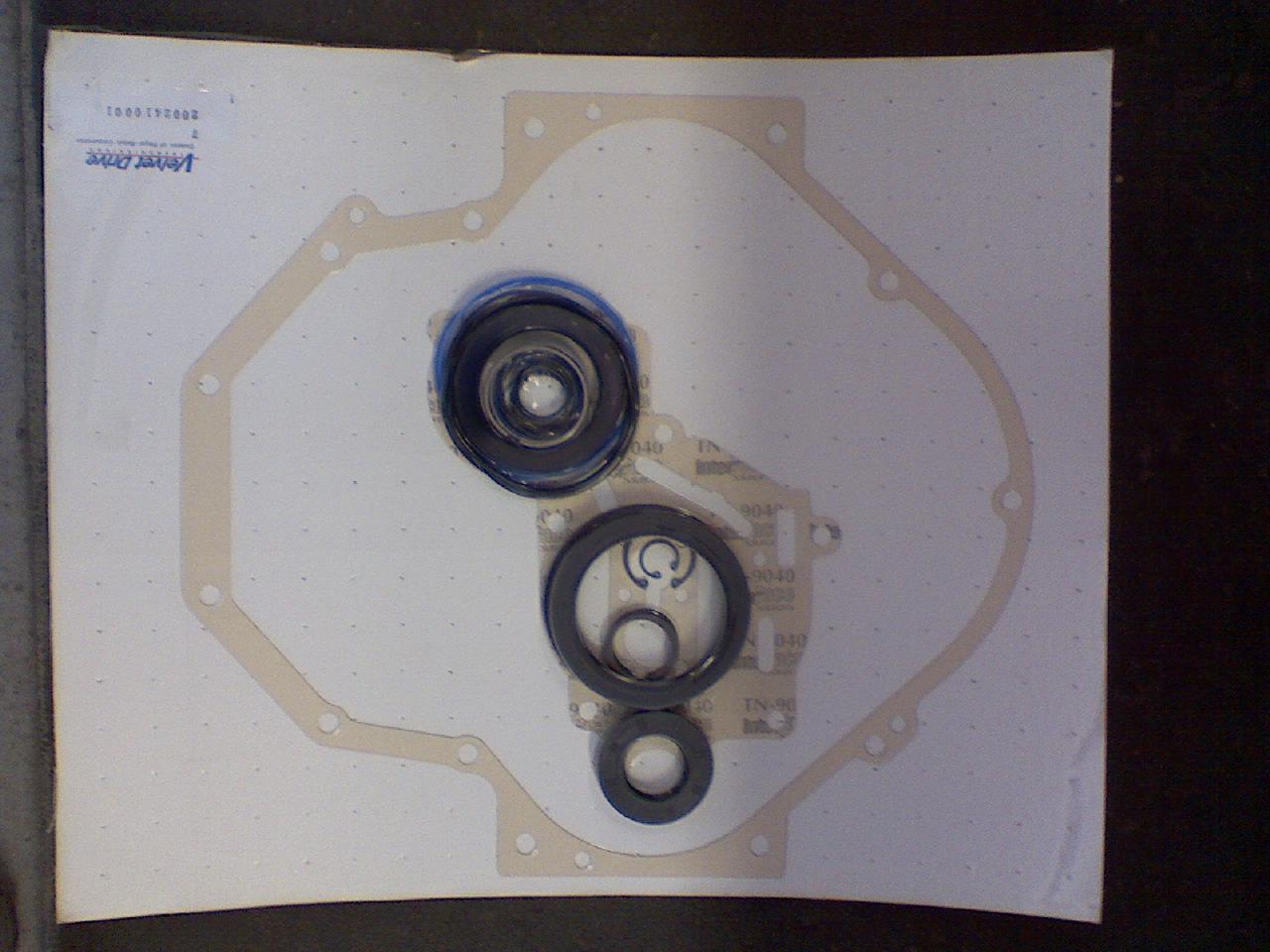

5000V gasket & seal kit, part number 2002-410-001.

Part number: 2002-410-001
Listed under: 5000 Series Parts

What's in this kit (factory parts list)

Item numbers are from the Velvet Drive 5000V V-drive parts diagram (P-1 Transmission).

Item	Part no.	Description	Qty
108	2001-045-002	Gasket, pump	1
117	2000-044-004	Output seal (flange)	1
120	2000-044-003	Output seal (retainer)	1
130	2002-045-002	Gasket, case cover	1
135	1000-044-065	Seal, input shaft	2
145	1000-141-214	O-ring	1
201	2000-141-501	O-ring	1
211	1000-139-071	Snap ring	1
213	1000-141-123	O-ring, control valve	1
216	2001-045-003	Gasket, screen cover plate	1
707	1000-139-068	Snap ring	6
709	1000-139-069	Snap ring	2
721	1000-016-020	Seal, piston small (teflon)	2
722	1000-141-130	O-ring	2
724	1000-141-241	O-ring	2
725	1000-016-019	Seal, piston large (teflon)	2
729	1000-141-045	O-ring, shaft to ring gear	2
730	2000-016-050	Sealing ring, steel	2
731	1000-016-021	Sealing ring, piston	2
737	2000-139-001	Snap ring	1
