Velvet Drive 1004 and 1005 V-drive parts diagram
This is the factory exploded view of the Velvet Drive 71C and 72C V-drive, the 1004 (71C, tags 10-04) and the 1005 (72C, tags 10-05). It comes from Borg-Warner's V-drive service manual, which draws the unit in two parts: the transmission (Figure 10) and the V-drive gearbox bolted behind it (Figure 12). The gearbox items are shown as V1 to V49 so they don't mix with the transmission's 1 to 82. Tap any part to see its factory part number and which kits include it. If we stock it, you can order it right from the part.
The two drawings have 129 numbered items, and the model charts list 24 model numbers. 128 of the part numbers are in our online store. Hale Marine is an official Velvet Drive distributor, in business since 1953.
1
Which transmission do you have?
71CTag starts 10-17
72CTag starts 10-18
100471C V-drive, tag 10-04
100572C V-drive, tag 10-05
5000ATag starts 2001Coming
5000VTag starts 2002
CR-2Tag starts 1013 or 1014Coming
2
Narrow it down to your model
It's stamped on the identification plate. 1004-011 works too.
3
Tap a part

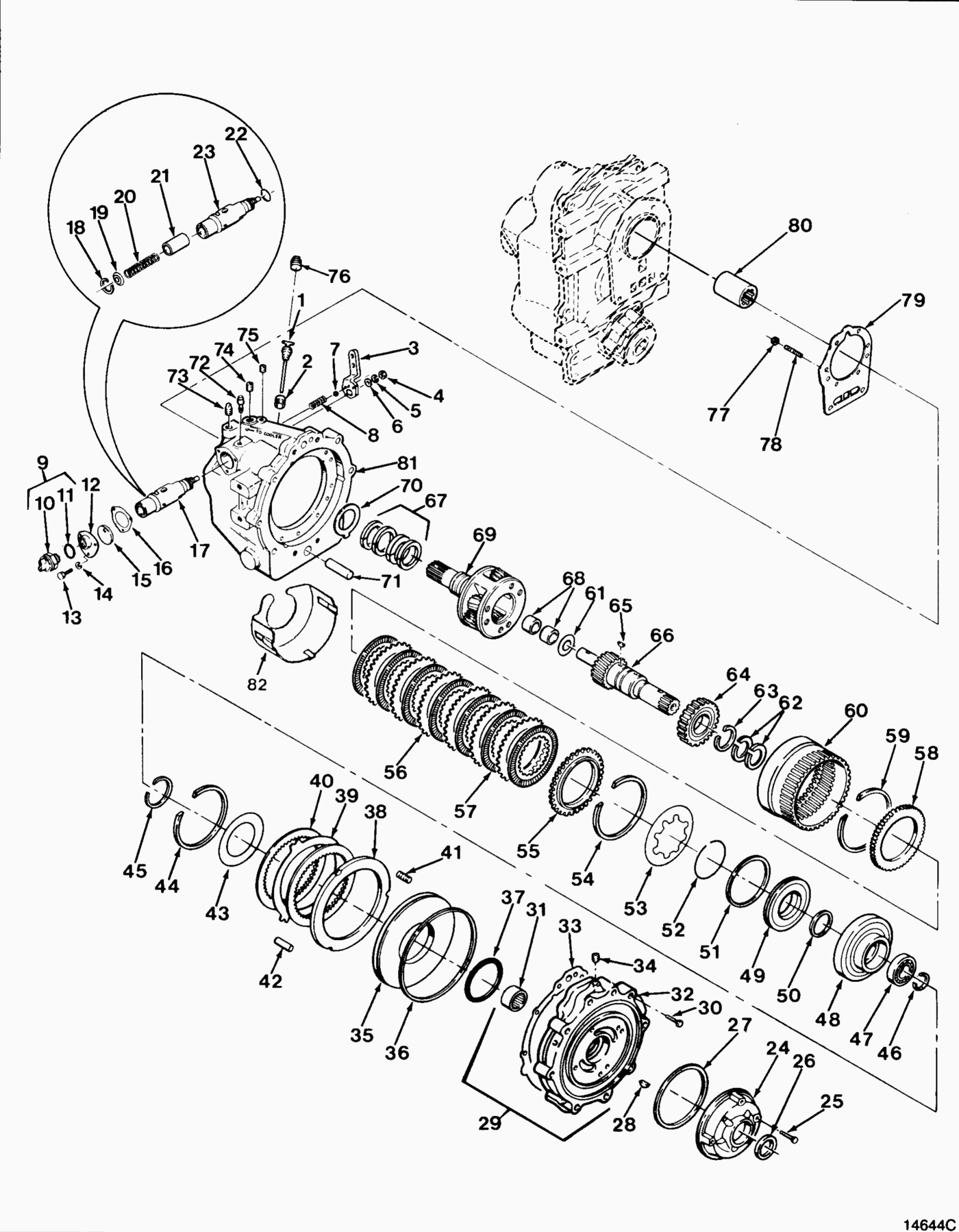

Figure 10 · 71C and 72C V-drive transmission assembly
Drag to move · pinch or Ctrl + scroll to zoom
Find your model number
The model number is on the identification plate. One that starts 10-04 is a 71C V-drive (1004), and 10-05 is a 72C V-drive (1005). We often write it short, so 10-04-000-011 and 1004-011 are the same unit.
Every 1004 uses the same transmission section, 10-04-410-001, and every 1005 uses 10-05-410-001. The ratio comes from the V-drive gearbox, which carries the same last three digits (13-08-410-011 on a 1004-011). Type your model number in the box above and the gearbox parts switch to your ratio.
1004 (71C V-drive) model chart
| Model | Ratio | Drive (from the parts list) | Transmission section | V-drive gearbox | We sell |
|---|---|---|---|---|---|
| 10-04-000-002 | 1.99:1 | gear | 10-04-410-001 | 13-08-410-002 | Rebuilt 1004-002 |
| 10-04-000-003 | 1.98:1 | chain | 10-04-410-001 | 13-08-410-003 | |
| 10-04-000-004 | 2.50:1 | chain | 10-04-410-001 | 13-08-410-004 | |
| 10-04-000-005 | 2.49:1 | gear | 10-04-410-001 | 13-08-410-005 | |
| 10-04-000-006 | 3.10:1 | chain | 10-04-410-001 | 13-08-410-006 | |
| 10-04-000-007 | 3.14:1 | not listed | 10-04-410-001 | 13-08-410-007 | |
| 10-04-000-008 | 0.97:1 | chain | 10-04-410-001 | 13-08-410-008 | |
| 10-04-000-009 | 0.96:1 | not listed | 10-04-410-001 | 13-08-410-009 | |
| 10-04-000-010 | 1.53:1 | chain | 10-04-410-001 | 13-08-410-010 | |
| 10-04-000-011 | 1.51:1 | gear | 10-04-410-001 | 13-08-410-011 | Rebuilt 1004-011 |
| 10-04-000-012 | 1.21:1 | gear or chain | 10-04-410-001 | 13-08-410-012 | |
| 10-04-000-013 | 1.21:1 | gear or chain | 10-04-410-001 | 13-08-410-013 |
1005 (72C V-drive) model chart
| Model | Ratio | Drive (from the parts list) | Transmission section | V-drive gearbox | We sell |
|---|---|---|---|---|---|
| 10-05-000-002 | 1.99:1 | gear | 10-05-410-001 | 13-08-410-002 | |
| 10-05-000-003 | 1.98:1 | chain | 10-05-410-001 | 13-08-410-003 | |
| 10-05-000-004 | 2.50:1 | chain | 10-05-410-001 | 13-08-410-004 | Rebuilt 1005-004 |
| 10-05-000-005 | 2.49:1 | gear | 10-05-410-001 | 13-08-410-005 | Rebuilt 1005-005 |
| 10-05-000-006 | 3.10:1 | chain | 10-05-410-001 | 13-08-410-006 | |
| 10-05-000-007 | 3.14:1 | not listed | 10-05-410-001 | 13-08-410-007 | |
| 10-05-000-008 | 0.97:1 | chain | 10-05-410-001 | 13-08-410-008 | |
| 10-05-000-009 | 0.96:1 | not listed | 10-05-410-001 | 13-08-410-009 | |
| 10-05-000-010 | 1.53:1 | chain | 10-05-410-001 | 13-08-410-010 | |
| 10-05-000-011 | 1.51:1 | gear | 10-05-410-001 | 13-08-410-011 | |
| 10-05-000-012 | 1.21:1 | gear or chain | 10-05-410-001 | 13-08-410-012 | |
| 10-05-000-013 | 1.21:1 | gear or chain | 10-05-410-001 | 13-08-410-013 |
Gear drive or chain drive
The gearbox is built either with a pair of gears or with two sprockets and a chain. The gears or sprockets set the ratio (V21 and V30), and a few other parts change with the drive: the case (V11), the gear spacers (V19 and V29), the chain (V22) and the oil baffle (V36).
The factory list gives gears for 1.99, 1.51, 2.49 and 1.21:1, and sprockets or a chain for 1.98, 1.53, 2.50, 1.21, 0.97 and 3.10:1. Both drives were made at 1.21:1, and the model chart doesn't say which drive each 1.21:1 model has, so those parts show both versions. For the other ratios the list only says "ratio no longer available". Call us with your model number for any of these.
1004 or 1005: the parts that differ
The gearbox is the same on both. In the transmission (Figure 10), these 17 items take a different part number on a 1005. The forward clutch pack kit is different too: A4867AE for 10-04 units, A4867AB for 10-05 units.
| Item | Part | 1004 (10-04) | 1005 (10-05) |
|---|---|---|---|
| 39 | Steel clutch plate | 72-176 | 72-176 |
| 40 | Friction clutch plate | 72-A66B | 72-A66B |
| 42 | Dowel pin, 0.312 dia x 0.621 long | R6-177 | 4622E |
| 45 | Snap ring | R6A-7-1/2 | 4766B |
| 46 | Snap ring | 4734 | 4559A |
| 47 | Bearing | B107A | 1000-130-016 |
| 48 | Forward clutch cylinder | 71-70 | 72-70 |
| 56 | Steel clutch plate | 1016-166-001 | 1016-166-001 |
| 57 | Friction clutch plate | 5C-A66A | 5C-A66A |
| 59 | Snap ring, 0.033-0.037 in thick | 10-00-139-048, 10-00-139-049 | 4768, 4768A, 4768B, 10-00-139-018 |
| 60 | Ring gear | 71-6 | 1016-162-001 |
| 64 | Forward clutch hub | 71-40 | 10-16-179-001 |
| 65 | Woodruff key | 218211 | 124553 |
| 66 | Drive gear assembly | 71C-3A16 | 72C-2A16 |
| 69 | Pinion carrier assembly (10-04, with sealing rings) | 10-17-659-020, 71-1A2A | 10-18-659-014, 72-1A2A |
| 71 | Suction tube | 10-04-034-001 | 10-05-034-001 |
| 81 | Case assembly (10-04, with sealing rings) | 10-04-565-005, 10-04-565-002 | 10-05-565-012, 10-05-565-002 |
What the marks in the factory list mean
- * The number depends on your model. Check the model chart.
- + Selective fit. Use as required to get the right end play or gear contact.
- NSS Not serviced separately. You buy the next assembly up.
Factory kits for the 1004 and 1005
These are the 4 kits in the factory parts list, with what's in each one. Item numbers point to the drawings.
A4867AE Forward Clutch Pack Kit (1004 only) Order the kit $318.75
A4867AB Forward Clutch Pack Kit (1005 only) Order the kit $312.50
10-04-420-052 Neutral Switch Kit Order the kit $450.00
10-95-410-002 Snap Ring Service Kit Order the kit $450.00
| Item | Part no. | Description | Qty |
|---|---|---|---|
| 4766 | Retaining ring | 1 | |
| 18 | 4821 | Snap ring | 1 |
| 44 | 4822 | Snap ring | 1 |
| 45 | R6A-7-1/2 | Snap ring (10-04 only) | 1 |
| 45A | 4766B | Snap ring (10-05 only) | 1 |
| 46 | 4734 | Snap ring (10-04 only) | 2 |
| 46A | 4559A | Snap ring (10-05 only) | 1 |
| 54 | 4755 | Snap ring | 1 |
| 59 | 10-00-139-048 | Snap ring (0.033-0.037 thick) (10-04 only) | 1 |
| 59A | 10-00-139-049 | Snap ring (0.050-0.054 thick) (10-04 only) | 1 |
| 59B | 4768 | Snap ring (0.050-0.054 thick) (10-05 only) | 2 |
| 59C | 4768A | Snap ring (0.074-0.078 thick) (10-05 only) | 1 |
| 59D | 4768B | Snap ring (0.096-0.100 thick) (10-05 only) | 1 |
| 63 | 4495 | Snap ring | 1 |
| 4756D | Snap ring | 1 | |
| 4756E | Snap ring | 1 | |
| 4816 | Snap ring | 1 | |
| 4766A | Snap ring | 1 |
Full parts lists and model charts
Velvet Drive 1004 V-drive parts list, Figures 10 and 12
| Item | Part no. | Description | Qty |
|---|---|---|---|
| Figure 10 Transmission | |||
| 1 | 10-06-559-001 | Dipstick (early) | 1 |
| 2 | 10-04-034-002 | Dipstick tube (early) | 1 |
| 3 | 71-79B | Shift lever | 1 |
| 4 | 9418892 | Hex nut, 5/16-24 | 1 |
| 5 | 108579 | Lockwasher, 5/16 | 1 |
| 6 | 103340 | Flatwasher, 5/16 | 1 |
| 7 | 453632 | Steel ball, 5/16 | 1 |
| 8 | 71-42 | Poppet spring | 1 |
| 9 | 10-00-640-004 | Neutral switch assembly | 1 |
| 10 | call | Neutral switch (NSS) | 1 |
| 11 | 10-00-141-046 | O-ring | 1 |
| 12 | 10-16-039-001 | Valve cover | 1 |
| 13 | 179796 | Hex head bolt, 1/4-20 x 1/2 | 3 |
| 14 | 103319 | Lockwasher, 1/4 | 3 |
| 15 | 10-16-099-001 | Switch cam | 1 |
| 16 | 71-14 | Valve cover gasket | 1 |
| 17 | 71-A244A | Control valve assembly | 1 |
| 18 | 4821 | Snap ring | 1 |
| 19 | 71-246 | Spring retainer | 1 |
| 20 | 71-242 | Valve spring (black) | 1 |
| 72N-242 | Valve spring (white) -- superseded by 71-242 | 1 | |
| 21 | 71-243 | Regulator valve | 1 |
| 22 | 4804H | O-ring | 1 |
| 23 | 71-244A | Control valve | 1 |
| 24 | 71C-A60 | Pump assembly | 1 |
| 25 | 10-00-183-021 | Hex head bolt, 5/16-18 x 1-3/8 | 4 |
| 26 | 10-00-044-014 | Oil seal | 1 |
| 27 | 3-61 | Pump gasket | 1 |
| 28 | 4873 | Woodruff key | 1 |
| 29 | 71C-A8 | Forward and reverse adapter assembly | 1 |
| 30 | 4911 | Capscrew, 3/8-16 x 1-1/4 | 4 |
| 31 | 4840D | Needle bearing | 1 |
| 32 | call | Forward and reverse adapter (NSS) | 1 |
| 33 | 71-144B | Gasket | 1 |
| 34 | 444858 | Pipe plug, 1/4 | 1 |
| 35 | 71-35 | Reverse clutch piston | 1 |
| 36 | 4805A | Clutch sealing ring | 1 |
| 37 | 4804G | O-ring | 1 |
| 38 | 71-71 | Reverse clutch pressure plate | 1 |
| 39 | 72-176 | Steel clutch plate | 1 |
| 40 | 72-A66B | Friction clutch plate | 2 |
| 41 | 71-97 | Pressure plate spring | 11 |
| 42 | R6-177 | Dowel pin, 0.312 dia x 0.621 long | 3 |
| 43 | 71-15B | Thrustwasher (selective, see footnote +) | 1 |
| 10-16-193-001 | Thrustwasher (selective, see footnote +) | 1 | |
| 44 | 4822 | Snap ring | 1 |
| 45 | R6A-7-1/2 | Snap ring | 1 |
| 46 | 4734 | Snap ring | 1 |
| 47 | B107A | Bearing | 1 |
| 48 | 71-70 | Forward clutch cylinder | 1 |
| 49 | 10-16-124-001 | Forward clutch piston | 1 |
| 50 | 5M-122 | O-ring | 1 |
| 51 | 5L-36 | Piston sealing ring | 1 |
| 52 | 5C-33 | Clutch spring bearing ring | 1 |
| 53 | 3-37 | Clutch Belleville spring | 1 |
| 54 | 4755 | Snap ring | 1 |
| 55 | 5C-175A | Clutch pressure plate | 1 |
| 56 | 1016-166-001 | Steel clutch plate | 4 |
| 57 | 5C-A66A | Friction clutch plate | 5 |
| 58 | 5L-67 | Clutch pressure plate | 1 |
| 59 | 10-00-139-048 | Snap ring, 0.033-0.037 in thick | 1 |
| 10-00-139-049 | Snap ring, 0.050-0.054 in thick | 1 | |
| 60 | 71-6 | Ring gear | 1 |
| 61 | 71-17 | Thrustwasher | 1 |
| 62 | 4806J | Sealing ring | 2 |
| 63 | 4495 | Snap ring | 1 |
| 64 | 71-40 | Forward clutch hub | 1 |
| 65 | 218211 | Woodruff key | 1 |
| 66 | 71C-3A16 | Drive gear assembly | 1 |
| 67 | 4806B | Sealing ring | 4 |
| 71-28C | Bushing, old style (not illustrated) | 2 | |
| 68 | 71-9C | Bushing | 3 |
| 69 | 10-17-659-020 | Pinion carrier assembly (10-04, with sealing rings) (call to confirm) | 1 |
| 71-1A2A | Pinion carrier assembly (10-04, with bushings) (call to confirm) | 1 | |
| 70 | 71-159 | Thrustwasher (case with bushings) | 1 |
| 10-17-193-001 | Thrustwasher (case without bushings) | 1 | |
| 71 | 10-04-034-001 | Suction tube | 1 |
| 72 | A4740G | Breather | 1 |
| 73 | 1000-191-059 | Shipping plug, 3/8-18 | 1 |
| 74 | 444866 | Pipe plug, 3/8-18 | 1 |
| 75 | 444687 | Pipe plug, 1/8-27 | 1 |
| 76 | 444752 | Pipe plug, 3/4-14 (current) | 1 |
| 77 | 9419506 | Hex nut, 7/16-20 | 6 |
| 78 | 10-00-146-001 | Stud | 6 |
| 79 | 13-08-045-002 | Gasket | 1 |
| 80 | 13-08-089-001 | Coupling (not supplied, order separately -- see footnote) | 1 |
| 81 | 10-04-565-005 | Case assembly (10-04, with sealing rings) (call to confirm) | 1 |
| 10-04-565-002 | Case assembly (10-04, with bushings) (call to confirm) | 1 | |
| 82 | 1017-036-002 | Oil baffle (used on 71C) | 1 |
| 1018-036-001 | Oil baffle (used on 72C) | 1 | |
| Figure 12 V-drive gearbox | |||
| V1 | 10-05-559-001 | Dipstick (replaces 10-06-559-001, see footnote +) | 1 |
| V2 | 13-08-034-001 | Dipstick tube | 1 |
| V3 | 1000-149-034 | Output shaft nut | 1 |
| V4 | 1000-031-001 | Coupling | 1 |
| 4912 | Coupling (early models) | 1 | |
| V5 | 1000-044-017 | Oil seal | 1 |
| 71C-110 | Oil seal (early models) | 1 | |
| V6 | 1308-027-005 | Bearing cap | 1 |
| 1308-027-001 | Bearing cap (early models) | 1 | |
| V7 | 00009421652 | Socket head bolt, 7/16-14 x 2 | 6 |
| 0000179866 | Hex head bolt, 7/16-14 x 2 (early models) | 6 | |
| V8 | 0000103322 | Lockwasher, 7/16 | 6 |
| V9 | 13-08-045-003 | Gasket | 1 |
| V10 | 4920 | Bearing assembly | 1 |
| V11 | 13-08-565-015 | Case assembly (1.51, 1.53, 1.98, and 1.99 ratios) | 1 |
| 13-08-565-018 | Case assembly (all other ratios) | 1 | |
| V12 | 4853E | Hex head bolt, 7/16-14 x 1-1/4 | 8 |
| V13 | 0000103322 | Lockwasher, 7/16 | 8 |
| V14 | 1308-045-001 | Gasket (used before April 6, 1992) | 1 |
| 1308-045-004 | Gasket (used after April 6, 1992) | 1 | |
| V15 | 0000100360 | Tapered pin | 2 |
| V17 | 1000-133-001 | Bearing cup | 1 |
| V18 | 1000-133-002 | Bearing cone | 1 |
| V19 | 13-08-053-001 | Gear spacer (gear drive only) | 1 |
| V20 | 13-08-189-002 | Input shaft | 1 |
| V21 | 13-08-070-001 | Gear, 34 teeth (used in 1.99:1 ratio) | 1 |
| 13-08-070-002 | Gear, 39 teeth (used in 1.51:1 ratio) | 1 | |
| 13-08-070-003 | Gear, 30 teeth (used in 2.49:1 ratio) | 1 | |
| 13-08-070-004 | Gear, 43 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-070-005 | Gear, 26 teeth (ratio no longer available) | 1 | |
| 13-08-070-006 | Gear, 47 teeth (ratio no longer available) | 1 | |
| 13-08-144-007 | Sprocket, 29 teeth (used in 1.98:1 ratio) | 1 | |
| 13-08-144-008 | Sprocket, 33 teeth (used in 1.53:1 ratio) | 1 | |
| 13-08-144-009 | Sprocket, 25 teeth (used in 2.53:1 ratio) | 1 | |
| 13-08-144-010 | Sprocket, 36 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-144-011 | Sprocket, 23 teeth (ratio no longer available) | 1 | |
| 13-08-144-012 | Sprocket, 41 teeth (ratio no longer available) | 1 | |
| V22 | 13-08-143-003 | Drive chain, 52 pitches (used in 1.21:1, 1.53:1, 1.98:1, and 2.50:1 ratios only) | 1 |
| 13-08-143-004 | Drive chain, 54 pitches (used in 0.97:1 and 3.10:1 ratios only, no longer available) | 1 | |
| V24 | 1000-133-001 | Bearing cup | 1 |
| V25 | 1000-133-002 | Bearing cone | 1 |
| V26 | Bearing, cup (V27) and cone (V28) | ||
| V27 | 1000-133-003 | Bearing cup | 1 |
| V28 | 1000-133-004 | Bearing cone | 1 |
| V29 | 13-08-053-001 | Gear spacer (gear drive only) | 1 |
| V30 | 13-08-070-001 | Gear, 34 teeth (used in 1.51:1 ratio) | 1 |
| 1308-070-002 | Gear, 39 teeth (used in 1.99:1 ratio) | 1 | |
| 1308-070-003 | Gear, 30 teeth (used in 1.21:1 ratio) | 1 | |
| 1308-070-004 | Gear, 43 teeth (used in 2.49:1 ratio) | 1 | |
| 1308-070-005 | Gear, 26 teeth (ratio no longer available) | 1 | |
| 1308-070-006 | Gear, 47 teeth (ratio no longer available) | 1 | |
| 13-08-144-007 | Sprocket, 29 teeth (used in 1.53:1 ratio) | 1 | |
| 13-08-144-008 | Sprocket, 33 teeth (used in 1.98:1 ratio) | 1 | |
| 13-08-144-009 | Sprocket, 25 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-144-010 | Sprocket, 36 teeth (used in 2.50:1 ratio) | 1 | |
| 13-08-144-011 | Sprocket, 23 teeth (ratio no longer available) | 1 | |
| 13-08-144-012 | Sprocket, 41 teeth (ratio no longer available) | 1 | |
| V31 | 13-08-410-014 | Bevel gear and shaft (matched set) | 1 |
| 1308-171-002 | Shaft only (early models only) | 1 | |
| V32 | Bearing, cup (V33) and cone (V34) | ||
| V33 | 1000-133-001 | Bearing cup | 1 |
| V34 | 1000-133-002 | Bearing cone | 1 |
| V35 | 13-08-037-012 | Shim, 0.050 in thick | AR |
| 13-08-037-013 | Shim, 0.040 in thick | AR | |
| 13-08-037-014 | Shim, 0.030 in thick | AR | |
| 13-08-037-015 | Shim, 0.020 in thick | AR | |
| 13-08-037-016 | Shim, 0.010 in thick | AR | |
| 13-08-037-017 | Shim, 0.005 in thick | AR | |
| 13-08-037-018 | Shim, 0.004 in thick | AR | |
| 13-08-037-019 | Shim, 0.003 in thick | AR | |
| V36 | 13-08-036-001 | Oil baffle (gear drive) | 1 |
| 13-08-036-003 | Oil baffle (chain drive) | 1 | |
| V37 | 0000186491 | Machine screw, 1/4-20 x 1/2 | 2 |
| V38 | 13-08-036-002 | Oil sleeve | 1 |
| V39 | 10-13-037-002 | Shim, 0.005 in thick | AR |
| 10-13-037-004 | Shim, 0.009 in thick | AR | |
| 10-13-037-009 | Shim, 0.020 in thick | AR | |
| V40 | 13-08-410-014 | Bevel gear and output shaft (matched set) | 1 |
| 1308-171-001 | Shaft only (early models only) | 1 | |
| V41 | T86-7-1/2 | Snap ring | 1 |
| V42 | 10-00-134-001 | Roller bearing | 1 |
| V43 | 13-08-027-003 | Bearing cap | 2 |
| V44 | 9422345 | Spring pin, 3/16 x 9/16 long | 2 |
| V45 | 10-00-141-235 | O-ring | 2 |
| V46 | 10-00-113-004 | Expansion plug (some models only) | 1 |
| V47 | 1308-534-002 | Tube | 1 |
| V48 | 1000-045-005 | Washer | 1 |
| V49 | 120854 | Nut | 1 |
Velvet Drive 1005 V-drive parts list, Figures 10 and 12
| Item | Part no. | Description | Qty |
|---|---|---|---|
| Figure 10 Transmission | |||
| 1 | 10-06-559-001 | Dipstick (early) | 1 |
| 2 | 10-04-034-002 | Dipstick tube (early) | 1 |
| 3 | 71-79B | Shift lever | 1 |
| 4 | 9418892 | Hex nut, 5/16-24 | 1 |
| 5 | 108579 | Lockwasher, 5/16 | 1 |
| 6 | 103340 | Flatwasher, 5/16 | 1 |
| 7 | 453632 | Steel ball, 5/16 | 1 |
| 8 | 71-42 | Poppet spring | 1 |
| 9 | 10-00-640-004 | Neutral switch assembly | 1 |
| 10 | call | Neutral switch (NSS) | 1 |
| 11 | 10-00-141-046 | O-ring | 1 |
| 12 | 10-16-039-001 | Valve cover | 1 |
| 13 | 179796 | Hex head bolt, 1/4-20 x 1/2 | 3 |
| 14 | 103319 | Lockwasher, 1/4 | 3 |
| 15 | 10-16-099-001 | Switch cam | 1 |
| 16 | 71-14 | Valve cover gasket | 1 |
| 17 | 71-A244A | Control valve assembly | 1 |
| 18 | 4821 | Snap ring | 1 |
| 19 | 71-246 | Spring retainer | 1 |
| 20 | 71-242 | Valve spring (black) | 1 |
| 72N-242 | Valve spring (white) -- superseded by 71-242 | 1 | |
| 21 | 71-243 | Regulator valve | 1 |
| 22 | 4804H | O-ring | 1 |
| 23 | 71-244A | Control valve | 1 |
| 24 | 71C-A60 | Pump assembly | 1 |
| 25 | 10-00-183-021 | Hex head bolt, 5/16-18 x 1-3/8 | 4 |
| 26 | 10-00-044-014 | Oil seal | 1 |
| 27 | 3-61 | Pump gasket | 1 |
| 28 | 4873 | Woodruff key | 1 |
| 29 | 71C-A8 | Forward and reverse adapter assembly | 1 |
| 30 | 4911 | Capscrew, 3/8-16 x 1-1/4 | 4 |
| 31 | 4840D | Needle bearing | 1 |
| 32 | call | Forward and reverse adapter (NSS) | 1 |
| 33 | 71-144B | Gasket | 1 |
| 34 | 444858 | Pipe plug, 1/4 | 1 |
| 35 | 71-35 | Reverse clutch piston | 1 |
| 36 | 4805A | Clutch sealing ring | 1 |
| 37 | 4804G | O-ring | 1 |
| 38 | 71-71 | Reverse clutch pressure plate | 1 |
| 39 | 72-176 | Steel clutch plate | 2 |
| 40 | 72-A66B | Friction clutch plate | 3 |
| 41 | 71-97 | Pressure plate spring | 11 |
| 42 | 4622E | Dowel pin, 0.312 dia x 0.875 long | 3 |
| 43 | 71-15B | Thrustwasher (selective, see footnote +) | 1 |
| 10-16-193-001 | Thrustwasher (selective, see footnote +) | 1 | |
| 44 | 4822 | Snap ring | 1 |
| 45 | 4766B | Snap ring | 1 |
| 46 | 4559A | Snap ring | 1 |
| 47 | 1000-130-016 | Bearing | 1 |
| 48 | 72-70 | Forward clutch cylinder | 1 |
| 49 | 10-16-124-001 | Forward clutch piston | 1 |
| 50 | 5M-122 | O-ring | 1 |
| 51 | 5L-36 | Piston sealing ring | 1 |
| 52 | 5C-33 | Clutch spring bearing ring | 1 |
| 53 | 3-37 | Clutch Belleville spring | 1 |
| 54 | 4755 | Snap ring | 1 |
| 55 | 5C-175A | Clutch pressure plate | 1 |
| 56 | 1016-166-001 | Steel clutch plate | 6 |
| 57 | 5C-A66A | Friction clutch plate | 7 |
| 58 | 5L-67 | Clutch pressure plate | 1 |
| 59 | 4768 | Snap ring, 0.050-0.054 in thick | 1-2 |
| 4768A | Snap ring, 0.074-0.078 in thick | 1 | |
| 4768B | Snap ring, 0.096-0.100 in thick | 1 | |
| 10-00-139-018 | Snap ring, 0.062-0.066 in thick | 1 | |
| 60 | 1016-162-001 | Ring gear | 1 |
| 61 | 71-17 | Thrustwasher | 1 |
| 62 | 4806J | Sealing ring | 2 |
| 63 | 4495 | Snap ring | 1 |
| 64 | 10-16-179-001 | Forward clutch hub | 1 |
| 65 | 124553 | Woodruff key | 1 |
| 66 | 72C-2A16 | Drive gear assembly | 1 |
| 67 | 4806B | Sealing ring | 4 |
| 71-28C | Bushing, old style (not illustrated) | 2 | |
| 68 | 71-9C | Bushing | 3 |
| 69 | 10-18-659-014 | Pinion carrier assembly (10-05, with sealing rings) (call to confirm) | 1 |
| 72-1A2A | Pinion carrier assembly (10-05, with bushings) (call to confirm) | 1 | |
| 70 | 71-159 | Thrustwasher (case with bushings) | 1 |
| 10-17-193-001 | Thrustwasher (case without bushings) | 1 | |
| 71 | 10-05-034-001 | Suction tube | 1 |
| 72 | A4740G | Breather | 1 |
| 73 | 1000-191-059 | Shipping plug, 3/8-18 | 1 |
| 74 | 444866 | Pipe plug, 3/8-18 | 1 |
| 75 | 444687 | Pipe plug, 1/8-27 | 1 |
| 76 | 444752 | Pipe plug, 3/4-14 (current) | 1 |
| 77 | 9419506 | Hex nut, 7/16-20 | 6 |
| 78 | 10-00-146-001 | Stud | 6 |
| 79 | 13-08-045-002 | Gasket | 1 |
| 80 | 13-08-089-001 | Coupling (not supplied, order separately -- see footnote) | 1 |
| 81 | 10-05-565-012 | Case assembly (10-05, with sealing rings) (call to confirm) | 1 |
| 10-05-565-002 | Case assembly (10-05, with bushings) (call to confirm) | 1 | |
| 82 | 1017-036-002 | Oil baffle (used on 71C) | 1 |
| 1018-036-001 | Oil baffle (used on 72C) | 1 | |
| Figure 12 V-drive gearbox | |||
| V1 | 10-05-559-001 | Dipstick (replaces 10-06-559-001, see footnote +) | 1 |
| V2 | 13-08-034-001 | Dipstick tube | 1 |
| V3 | 1000-149-034 | Output shaft nut | 1 |
| V4 | 1000-031-001 | Coupling | 1 |
| 4912 | Coupling (early models) | 1 | |
| V5 | 1000-044-017 | Oil seal | 1 |
| 71C-110 | Oil seal (early models) | 1 | |
| V6 | 1308-027-005 | Bearing cap | 1 |
| 1308-027-001 | Bearing cap (early models) | 1 | |
| V7 | 00009421652 | Socket head bolt, 7/16-14 x 2 | 6 |
| 0000179866 | Hex head bolt, 7/16-14 x 2 (early models) | 6 | |
| V8 | 0000103322 | Lockwasher, 7/16 | 6 |
| V9 | 13-08-045-003 | Gasket | 1 |
| V10 | 4920 | Bearing assembly | 1 |
| V11 | 13-08-565-015 | Case assembly (1.51, 1.53, 1.98, and 1.99 ratios) | 1 |
| 13-08-565-018 | Case assembly (all other ratios) | 1 | |
| V12 | 4853E | Hex head bolt, 7/16-14 x 1-1/4 | 8 |
| V13 | 0000103322 | Lockwasher, 7/16 | 8 |
| V14 | 1308-045-001 | Gasket (used before April 6, 1992) | 1 |
| 1308-045-004 | Gasket (used after April 6, 1992) | 1 | |
| V15 | 0000100360 | Tapered pin | 2 |
| V17 | 1000-133-001 | Bearing cup | 1 |
| V18 | 1000-133-002 | Bearing cone | 1 |
| V19 | 13-08-053-001 | Gear spacer (gear drive only) | 1 |
| V20 | 13-08-189-002 | Input shaft | 1 |
| V21 | 13-08-070-001 | Gear, 34 teeth (used in 1.99:1 ratio) | 1 |
| 13-08-070-002 | Gear, 39 teeth (used in 1.51:1 ratio) | 1 | |
| 13-08-070-003 | Gear, 30 teeth (used in 2.49:1 ratio) | 1 | |
| 13-08-070-004 | Gear, 43 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-070-005 | Gear, 26 teeth (ratio no longer available) | 1 | |
| 13-08-070-006 | Gear, 47 teeth (ratio no longer available) | 1 | |
| 13-08-144-007 | Sprocket, 29 teeth (used in 1.98:1 ratio) | 1 | |
| 13-08-144-008 | Sprocket, 33 teeth (used in 1.53:1 ratio) | 1 | |
| 13-08-144-009 | Sprocket, 25 teeth (used in 2.53:1 ratio) | 1 | |
| 13-08-144-010 | Sprocket, 36 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-144-011 | Sprocket, 23 teeth (ratio no longer available) | 1 | |
| 13-08-144-012 | Sprocket, 41 teeth (ratio no longer available) | 1 | |
| V22 | 13-08-143-003 | Drive chain, 52 pitches (used in 1.21:1, 1.53:1, 1.98:1, and 2.50:1 ratios only) | 1 |
| 13-08-143-004 | Drive chain, 54 pitches (used in 0.97:1 and 3.10:1 ratios only, no longer available) | 1 | |
| V24 | 1000-133-001 | Bearing cup | 1 |
| V25 | 1000-133-002 | Bearing cone | 1 |
| V26 | Bearing, cup (V27) and cone (V28) | ||
| V27 | 1000-133-003 | Bearing cup | 1 |
| V28 | 1000-133-004 | Bearing cone | 1 |
| V29 | 13-08-053-001 | Gear spacer (gear drive only) | 1 |
| V30 | 13-08-070-001 | Gear, 34 teeth (used in 1.51:1 ratio) | 1 |
| 1308-070-002 | Gear, 39 teeth (used in 1.99:1 ratio) | 1 | |
| 1308-070-003 | Gear, 30 teeth (used in 1.21:1 ratio) | 1 | |
| 1308-070-004 | Gear, 43 teeth (used in 2.49:1 ratio) | 1 | |
| 1308-070-005 | Gear, 26 teeth (ratio no longer available) | 1 | |
| 1308-070-006 | Gear, 47 teeth (ratio no longer available) | 1 | |
| 13-08-144-007 | Sprocket, 29 teeth (used in 1.53:1 ratio) | 1 | |
| 13-08-144-008 | Sprocket, 33 teeth (used in 1.98:1 ratio) | 1 | |
| 13-08-144-009 | Sprocket, 25 teeth (used in 1.21:1 ratio) | 1 | |
| 13-08-144-010 | Sprocket, 36 teeth (used in 2.50:1 ratio) | 1 | |
| 13-08-144-011 | Sprocket, 23 teeth (ratio no longer available) | 1 | |
| 13-08-144-012 | Sprocket, 41 teeth (ratio no longer available) | 1 | |
| V31 | 13-08-410-014 | Bevel gear and shaft (matched set) | 1 |
| 1308-171-002 | Shaft only (early models only) | 1 | |
| V32 | Bearing, cup (V33) and cone (V34) | ||
| V33 | 1000-133-001 | Bearing cup | 1 |
| V34 | 1000-133-002 | Bearing cone | 1 |
| V35 | 13-08-037-012 | Shim, 0.050 in thick | AR |
| 13-08-037-013 | Shim, 0.040 in thick | AR | |
| 13-08-037-014 | Shim, 0.030 in thick | AR | |
| 13-08-037-015 | Shim, 0.020 in thick | AR | |
| 13-08-037-016 | Shim, 0.010 in thick | AR | |
| 13-08-037-017 | Shim, 0.005 in thick | AR | |
| 13-08-037-018 | Shim, 0.004 in thick | AR | |
| 13-08-037-019 | Shim, 0.003 in thick | AR | |
| V36 | 13-08-036-001 | Oil baffle (gear drive) | 1 |
| 13-08-036-003 | Oil baffle (chain drive) | 1 | |
| V37 | 0000186491 | Machine screw, 1/4-20 x 1/2 | 2 |
| V38 | 13-08-036-002 | Oil sleeve | 1 |
| V39 | 10-13-037-002 | Shim, 0.005 in thick | AR |
| 10-13-037-004 | Shim, 0.009 in thick | AR | |
| 10-13-037-009 | Shim, 0.020 in thick | AR | |
| V40 | 13-08-410-014 | Bevel gear and output shaft (matched set) | 1 |
| 1308-171-001 | Shaft only (early models only) | 1 | |
| V41 | T86-7-1/2 | Snap ring | 1 |
| V42 | 10-00-134-001 | Roller bearing | 1 |
| V43 | 13-08-027-003 | Bearing cap | 2 |
| V44 | 9422345 | Spring pin, 3/16 x 9/16 long | 2 |
| V45 | 10-00-141-235 | O-ring | 2 |
| V46 | 10-00-113-004 | Expansion plug (some models only) | 1 |
| V47 | 1308-534-002 | Tube | 1 |
| V48 | 1000-045-005 | Washer | 1 |
| V49 | 120854 | Nut | 1 |
Common questions
Is a 1004 the same as a 71C?
It's a 71C with a V-drive gearbox bolted on. About 65 percent of the transmission's part numbers match the in-line 71C, but the model number starts 10-04 instead of 10-17 and some parts are V-drive only. A 1005 is the same idea on a 72C.
Where's the ratio set?
In the V-drive gearbox. Every 1004 uses the same transmission section, 10-04-410-001, and every 1005 uses 10-05-410-001.
Is my V-drive gear drive or chain drive?
The ratio usually tells you: the factory list gives gears for 1.99, 1.51 and 2.49:1 and sprockets for 1.98, 1.53 and 2.50:1. Both were made at 1.21:1. If you're not sure, call us with the model number.
Does the transmission come with the coupling?
No. The factory doesn't supply the coupling (item 80) with the transmission or the V-drive gearbox. Order it separately.
What does NSS mean in the parts list?
Not serviced separately. The factory doesn't sell that part alone, so you buy the next assembly up.
What if the part isn't in your online store?
Call (804) 333-3677, Monday to Friday 9 to 3 Eastern, or email sales@halemarine.com with the part number.
More on the 1004 and 1005
The 1004 and 1005 are Velvet Drive's cast-iron V-drives, built on the 71C and 72C. Read about the 1004 and 1005, see the in-line 71C and 72C parts diagram, or shop 71 Series and 72 Series parts.
Not sure which you have? See how to read a Velvet Drive ID tag.
The drawings and part numbers come from the Borg-Warner Velvet Drive 71C and 72C V-drive service manual, Figures 10 and 12. Older units can use different parts, so check the number on your identification plate or call us before you order.
Questions? Call (804) 333-3677, Mon-Fri 9-3 ET, or email sales@halemarine.com. Updated September 28, 2026.
