Overheating transmissions

1018-106 1.88 lots of problems

What Chris sees on the bench

• The case and ring gear clutch assembly getting a little blue, and clutch plates starting to show overheating, on a transmission that was over-torqued.
• In severe cases, clutch pack plates welded together.
• Graphite material building up inside the clutch drum, and an overheated clutch hub with teeth marks and discoloration.

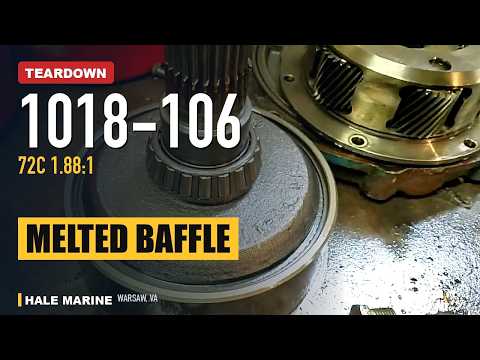

• A melted baffle in a cast-iron 1018 with the 1.88 gears.
• A phenolic or plastic washer that's gone brittle. If it was overheated, it'll snap.
• On a 5000, an overheated drum and clutch carrier and burnt-out clutch plates. Usually when things overheat, the thrust washer goes brittle, but on that one it still had a lot of pliability to it.
• A 1017-008 with the forward and reverse clutches, steels and pressure plates all burnt. Chris said he hadn't seen steels burnt like that in a long time.

What causes it

Here's what Chris has pointed to in the videos:

• Running it too hard. The plastic baffles will melt and goo will go everywhere if you run it too hard.
• Water in the fluid. The strawberry milkshake makes a thick goo in the sump that makes the pump work harder and the transmission overheat.
• The 2.10:1 design. Nothing binds the reverse planetary to the case, so it generates a lot of heat.
• Running reverse for forward. On the cast-iron units it smokes the planetaries.
• An impact or a high-speed shift. On one ZF63IV where the owner overheated the clutches, that's what Chris wondered about.
• A slipping clutch. Running above the rated engine rpm often means a clutch is slipping, and slipping usually squeals first. Keep running it slipping and it overheats, warps and can weld the plates together, then ties up when the other clutch applies.

Never run a 71C or 72C without a cooler or a bypass tube hooked up. The pressure regulator relies on cooler flow, and without it, line pressure runs too high.

Fix and prevention

If a cast-iron transmission overheats, take it apart and check for a melted baffle instead of just running it again. If the fluid's been over 190°F, change it and flush the whole cooler circuit along with the transmission. On the ZF 63s and 80s, pretty much that whole family, look inside the clutch drum. The clutch plates will cut grooves in the drum itself, and grease marks on the drum show you where that's headed.

When to call
